100 Square Meters CA Series Condenser mga Supplier, OEM/ODM Pabrika

100 Square Meters CA Series Condenser

Pangkalahatang Mga Tampok:

Ang mataas na eficient coils ay ginawa mula sa mataas na kalidad na tanso tube o 9.52mm at espesyal na profile aluminyo fins.

Ang pambalot:

Itim na pinahiran na galvanized na bakal (sa kahilingan ng customer, mataas na lakas ng corosion, epekto
pagtutol.at ay hindi gumagawa ng mga polusyon na labi.

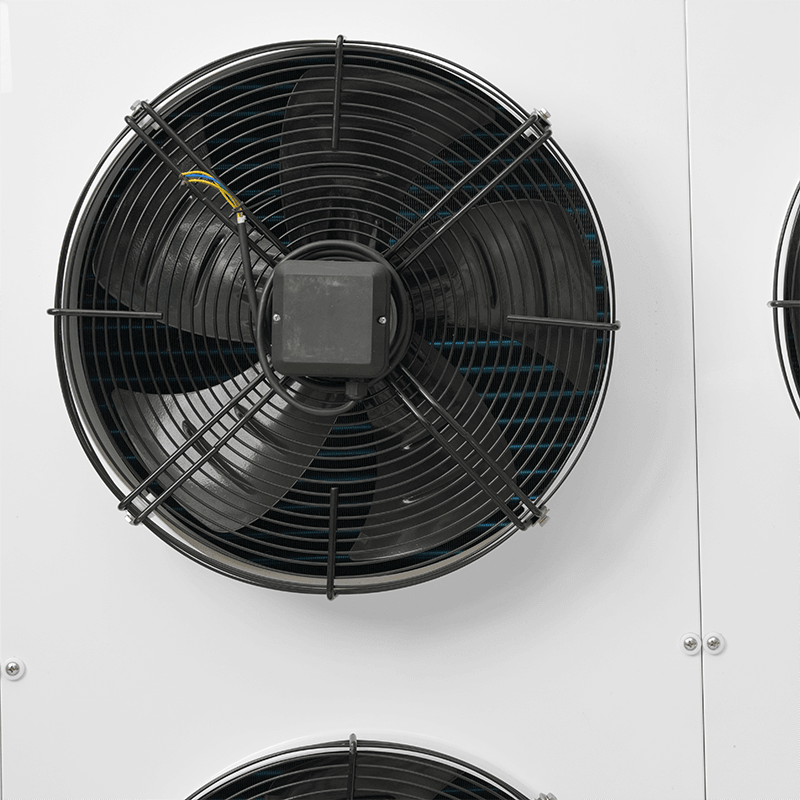

Ang mga fanmotors (opsyonal):

Opsyonal na Mataas na Kalidad ng Axial Fan Motors na may Mataas na Pamantayan sa Kaligtasan na Naakma nang Well sa Unit Casing.

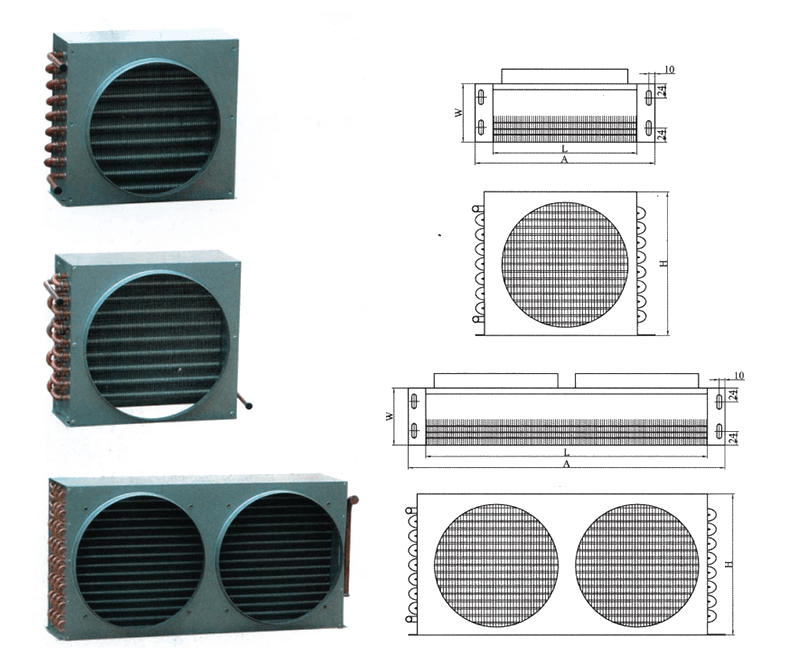

CA Series condenser

Modelo	Tubes n⁰	Kapasidad dt1 = 15k		Fin Space	Ibabaw (m²)	Ventilator		Dimensyon (mm)
Modelo	Tubes n⁰	(Kcal/h)	(W)	(mm)	Ibabaw (m²)	Walang x dia.	Daloy ng hangin	A	H	W	L
CA-82	8x2	675	785	3.5	1.2	1x200	640	280	245	100	240
CA-83	8x3	847	958	3.5	1.8	1x200	620	280	245	125	240
CA-84	8x3	990	1150	3.5	2.4	1x200	600	280	245	150	240
CA-92	9x2	930	1080	3.5	1.6	1x250	930	310	285	100	270
CA-93	9x3	1170	1360	3.5	2.3	1x250	905	310	285	125	270
CA-94	9x4	1370	1595	3.5	3.1	1x250	880	310	285	150	270
CA-103	10x3	1220	1420	3.5	2.6	1x250	905	310	285	125	270
CA-104	10x4	1430	1665	3.5	3.4	1x250	880	310	285	150	270
CA-114	11x4	1550	1800	3.5	4.1	1x250	880	340	290	150	300
CA-124A	12x4	1605	1865	3.5	4.5	1x250	880	340	315	150	300
CA-124B	12x4	2260	2630	3.5	5.2	1x300	1400	420	365	150	350
CA-143	14x3	2045	2375	3.5	4.6	1x300	1430	420	365	150	350
CA-144	14x4	2400	2790	3.5	6.1	1x300	1400	420	365	150	350
CA-145	14x5	2630	3060	3.5	7.6	1x300	1300	42	365	175	350
CA-163	16x3	3160	3675	3.5	6.4	1x350	2350	500	420	150	430
CA-164A	16x4	3475	4275	3.5	8.6	1x350	2260	500	420	150	430
CA-I64B	16x4	4890	5685	3.5	9	1x400	3500	520	465	200	450
CA165	16x5	5400	6280	3.5	11.2	1x400	3300	520	465	200	450
CA-185	18x5	5900	6860	3.5	14	1x400	3300	570	465	200	500
CA-104D	10x4	2815	3275	3.5	6.7	2x250	1700	610	285	150	540
CA-114D	11x4	3050	3545	3.5	8.2	2x250	1700	670	290	150	600
CA-124D	12x4	4445	5165	3.5	104	2x300	2700	770	365	150	700
CA-100S	14x3	5450	6430	2.5	128	2x300	2750	770	365	150	700
CA-150K	14x4	6430	7480	2.5	17	2x300	2700	770	365	150	700
CA-200L	16x3	8390	9760	2.5	16.7	2x350	4700	870	720	150	800
Ca-200s	18x3	8790	10220	2.5	18.8	2x350	4700	870	470	200	800
CA-300s	18x4	10230	11900	2.5	25	2x350	4520	870	470	200	800
CA-400F	20x4	11970	13920	2.5	38	2x350	4520	1145	420	200	1075
CA-400s	20x4	15620	18160	2.5	38	2x400	7000	1145	520	200	1075
CA-500T	22x5	17920	20840	2.5	52	2x400	6600	1145	600	230	1075
CA500S	22x5	25800	30000	2.5	52	2x450	12000	1145	600	230	1075
CA-600T	22x5	31380	36490	2.5	57	2x500	15500	1260	600	230	1190
CA-285	28x5	34480	40090	2.5	73	2x500	15500	1260	742	230	1190
CA-286	26x6	50030	58170	2.5	110	2x630	20500	1570	742	400	1500
